In brief
Holding slopes and banks with living plants as building material, from willow cuttings to brush layers, often combined with stone or timber.
What is soil bioengineering?
Soil bioengineering, in German Ingenieurbiologie or Lebendverbau, is the art of building with living plants. Where engineers would otherwise use concrete, steel or gabions to hold a slope or a bank, it uses willow branches, cuttings, rooted shrubs and grasses, laid so that they take root and grow into a living structure. Often it combines them with dead materials such as timber, stone or biodegradable fabric. These carry the load at first, until the roots have grown in and take over.
The discipline grew up in the Alpine countries, where torrents, avalanche paths and road cuttings had to be secured on steep ground. Austrian practitioners such as Hugo Meinhard Schiechtl collected and described the techniques in the twentieth century, and the field has since become a recognised branch of civil and hydraulic engineering. In Italy it is called ingegneria naturalistica. It has its own professional association, AIPIN, and several regions have published detailed technical manuals, including manuals specifically on slope stabilisation.
The techniques
The names sound like a craft vocabulary, and that is what they are.
Live stakes are cuttings of easily rooting woody plants, mostly willows, driven straight into the soil. Each one grows into a shrub, and together they knit the upper soil.
Live fascines are long bundles of branches laid in a shallow trench along the contour and partly covered with soil. They break up the slope into short sections, catch soil carried by the water and root along their whole length.
Brush layers are branches laid crosswise into the slope on narrow terraces, with the cut ends deep in the soil and the tips sticking out. They reinforce the soil far into the slope. When rooted plants are mixed in, the technique is called a hedge brush layer.
Brush mattresses are dense carpets of branches laid flat on a bank and pinned down with wire and stakes. They protect the surface like a living blanket, especially on riverbanks.

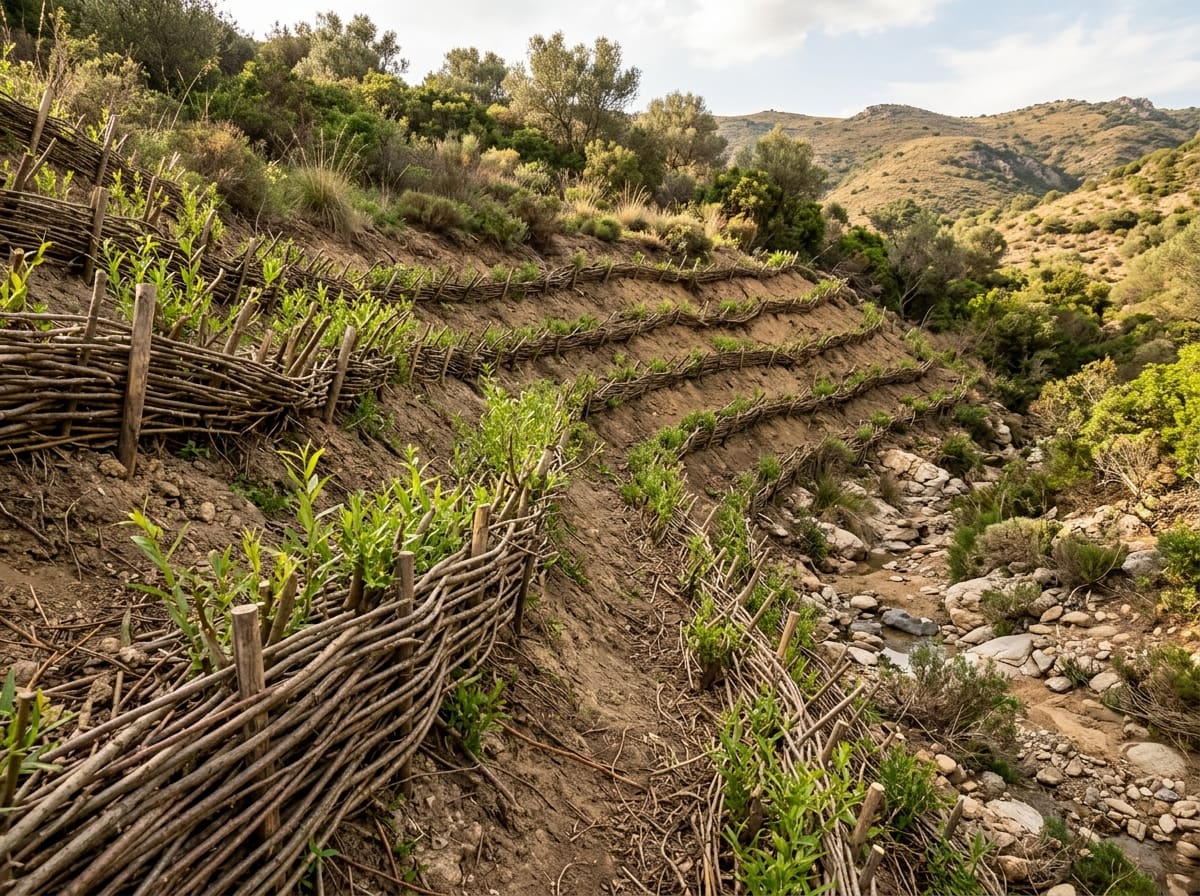

Wattle fences are low fences of stakes woven with flexible branches, a quick way to hold the surface on a slope until vegetation closes.
Live crib walls, known in Italy as palificata viva, are timber boxes filled with soil and stones, with live cuttings and plants inserted between the logs. When the timber rots after some years, the roots have taken over its role.
How plants hold a slope
Plants protect a slope in three ways. Their cover breaks the impact of rain and slows runoff, which keeps erosion in check at the surface. Their transpiration draws water out of the soil and lowers the pore pressure that triggers slips. And their roots act like fibres in reinforced soil: they cross the surfaces along which a slope would slide and add tensile strength. Engineers express this as additional root cohesion and include it in stability calculations.
This effect has a clear limit, which is depth. Most roots act in the upper metre or two. A study by Preti and Giadrossich on Spanish broom (Spartium junceum), a native shrub of the Mediterranean, found effective reinforcement down to about half a metre of soil and good properties for slope stabilisation even on steep sites under difficult conditions. The same study found that the shrub hardly propagates from cuttings and judged it less suited to classic bioengineering techniques and to triggering natural succession, so it is better planted with roots. Against deep landslides, plants alone are not enough; there, bioengineering supplements technical structures rather than replacing them.
Bioengineering in the Mediterranean
The Alpine methods cannot be transferred unchanged to a dry Mediterranean slope. Willows root almost anywhere, but they need moisture all year. On a sun-exposed slope in Sardinia they would survive only in the moist channels and along watercourses. Everywhere else the dry summer decides.
Mediterranean practice therefore works differently. Construction takes place in the cool, wet season, so that cuttings can root before the drought. Species are chosen for drought tolerance. Along watercourses, tamarisk, oleander and chaste tree are considered to root readily from cuttings. On open slopes, Spanish broom and typical shrubs of the macchia, such as mastic, myrtle, phillyrea and Italian buckthorn, are planted as young rooted plants, because their cuttings root poorly or not at all. All of these are native to the Mediterranean, and none of them is on the EU list of invasive alien species. Even so, a structure needs watering in its first summer, because that is when it is weakest.
That is the most important difference from a wall. A concrete structure has its full strength on the day it is finished and loses it over time. A living structure is weakest on its first day and gets stronger with every year in which roots grow and shoots thicken. Once established, it maintains and renews itself.
How Terra Humana understands it
Soil bioengineering expresses something close to our way of working: the most durable structures on a slope are the ones that grow. It is the engineering counterpart of what pioneer plants do on their own. Fast-rooting, robust species hold the ground first and prepare the site for those that follow.
The discipline also has a sobering lesson. A living structure stands or falls with its first summer. In the Mediterranean, the choice of species, the planting season and the water for the first dry months are part of the construction, not an afterthought.
Sa Medada
What this looks like at Sa Medada
Sa Medada is a slope on the eastern side of Sardinia with old terraces; there are no dry stone walls on the land. The dry season lasts from May to September, which is the real test for any planting on a slope. Project Eden begins with pioneer plants, ground cover and holding water.
More about Project EdenPlants in this entry
BroomSpartium junceum Mastic treePistacia lentiscus MyrtleMyrtus communis
Frequently asked
What is soil bioengineering?
Soil bioengineering is a construction discipline that uses living plants, or parts of plants that can root, as building material to protect slopes, banks and embankments against erosion and shallow slips. Willow branches, cuttings, rooted shrubs and grasses are installed so that they grow into a living structure. They are often combined with dead materials such as timber, stone or biodegradable fabric, which give protection from the first day until the roots take over. The discipline grew up in the Alpine countries; in Italy it is known as ingegneria naturalistica and has its own professional association.
What is the difference between a fascine, a brush layer and a brush mattress?
All three use branches that can root, but they are laid differently. A live fascine is a bundle of branches laid in a shallow trench along the contour and partly covered with soil; it breaks up the slope and roots along its whole length. A brush layer consists of branches laid crosswise into the slope on a narrow terrace, with their tips sticking out; they reinforce the soil deep into the slope. A brush mattress is a dense carpet of branches laid flat on a bank and pinned down, which protects the surface like a living blanket, typically on riverbanks.
How do plant roots stabilise a slope?
Roots act like fibres in reinforced soil. They cross potential slip surfaces and add tensile strength that soil alone lacks, an effect engineers describe as additional root cohesion. Plants also dry the soil through transpiration, which reduces water pressure in the pores, and their cover protects the surface from raindrop impact and runoff. The effect is limited by depth: most roots act in the upper metre or two. A study of Spanish broom found effective reinforcement down to about half a metre of soil. Against deep landslides, soil bioengineering alone is not enough.
Does soil bioengineering work in the dry Mediterranean?
Yes, but not with the Alpine methods unchanged. Classic techniques rely on willows, which root easily from cuttings but need moisture all year round. On dry Mediterranean slopes they survive only in moist channels or near watercourses. Elsewhere, drought-tolerant native species are needed, and work is timed for the rainy season so that cuttings can root before the summer. Many shrubs of the macchia root poorly from cuttings and are therefore used as young rooted plants. Italian practice has adapted the discipline to these conditions and documented it in regional manuals.
How long does it take for a bioengineering structure to work?
Unlike a concrete wall, a bioengineering structure is weakest on the day it is built and grows stronger every year as roots spread and shoots thicken. In the first one or two seasons the dead components, timber, stone or fabric, carry most of the load. If the plants fail during this phase, for instance in a drought summer, the structure fails with them. That is why the choice of species, the planting season and watering in the first summer matter more in the Mediterranean than anywhere else. Once established, the structure maintains and renews itself.
Related terms
Mentioned in
See this in practice
Sources
- Begemann and Schiechtl, Ingenieurbiologie: Handbuch zum ökologischen Wasser- und Erdbau, 2nd edition, Bauverlag (1994)
- D. H. Gray and R. B. Sotir, Biotechnical and Soil Bioengineering Slope Stabilization, Wiley (1996)
- F. Florineth, Pflanzen statt Beton: Handbuch zur Ingenieurbiologie und Vegetationstechnik, Patzer Verlag (2004)
- Preti and Giadrossich, Root reinforcement and slope bioengineering stabilization by Spanish broom (Spartium junceum L.), Hydrology and Earth System Sciences 13, pp. 1713-1726 (2009)
- Sauli, Cornelini and Preti, Manuale di ingegneria naturalistica, vol. 3: Sistemazione dei versanti, Regione Lazio (2006)
